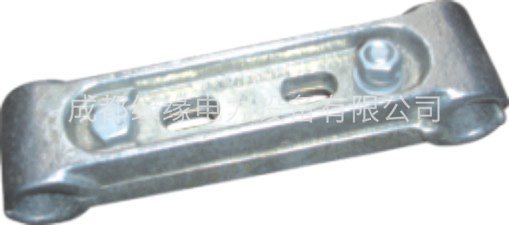

MRJ型雙分裂軟母線間隔棒
一、產品用途
MRJ型雙分裂軟母線間隔棒適用于將軟母線及其引下線的線間距離保持不變且兩根線不碰擊。
二、產品特點
a、握力好，固定線路牢固。
b、節能設計，線路損耗小。
c、絕緣性好，不傷導線。
d、安裝方便，維護簡單。
e、結構緊湊，美觀大方
MRJ型雙分裂軟母線間隔棒參數型號：
| 型號 | 適用母線規格 (mm) | 主要尺寸 (mm) | ||
| A | R | L | ||
| MRJ-4/120 | 18.1-22.0 | 50 | 11 | 120 |
| MRJ-5/120 | 23.0-29.0 | 60 | 14 | 120 |
| MRJ-6/120 | 29.1-35.0 | 70 | 17 | 120 |
| MRJ-4/200 | 18.1-22.0 | 50 | 11 | 200 |
| MRJ-5/200 | 23.0-29.0 | 60 | 14 | 200 |
| MRJ-6/200 | 29.0-35.0 | 70 | 17 | 200 |
| MRJ-4/400 | 18.1-22.0 | 50 | 11 | 400 |
| MRJ-5/400 | 23.0-29.0 | 60 | 14 | 400 |
| MRJ-6/400 | 29.0-35.0 | 70 | 17 | 400 |
| MRJ-9/120 | 45.0-49.0 | 60 | 24 | 120 |
| MRJ-9/200 | 45.0-49.0 | 60 | 24 | 200 |
| MRJ-9/400 | 45.0-49.0 | 60 | 24 | 400 |
| MRJ-10/200 | 50.0-55.0 | 70 | 26 | 200 |
| MRJ-10/400 | 50.0-55.0 | 70 | 26 | 400 |
| 型號 | 適用母線規格 (mm) | 主要尺寸 (mm) | 重量 | |||
| A | B | L | R | |||
| MRJ-600K/120 | LGKK-600 | 50 | 68 | 120 | 26 | 0.7 |
| MRJ-600K/200 | LGKK-600 | 60 | 70 | 200 | 26 | 2.2 |
| MRJ-600K/400 | LGKK-600 | 60 | 70 | 400 | 26 | 2.5 |
| MRJ-600K/450 | LGKK-600 | 60 | 70 | 450 | 26 | 3.3 |
| MRJ-900K/120 | LGKK-900 | 50 | 65 | 120 | 26 | 0.7 |
| MRJ-900K/200 | LGKK-900 | 50 | 68 | 200 | 26 | 2.2 |
| MRJ-900K/400 | LGKK-900 | 50 | 68 | 400 | 26 | 2.5 |
| MRJ-900K/450 | LGKK-900 | 50 | 68 | 450 | 26 | 3.3 |
| MRJ-1400K/400 | LGKK-1400 | 70 | 83 | 400 | 29 | 3.5 |
| MRJ-1400/120 | LGJQT-1400 | 50 | 68 | 120 | 26 | 0.7 |
| MRJ-1400/200 | LGJQT-1400 | 50 | 68 | 200 | 26 | 2.2 |
| MRJ-1400/400 | LGJQT-1400 | 60 | 70 | 400 | 26 | 2.5 |
| MRJ-1400/450 | LGJQT-1400 | 60 | 70 | 450 | 26 | 3.3 |
| MRJ-1440N/200 | NAHLGJQ-1400 | 60 | 70 | 200 | 26 | 2.2 |
| MRJ-1440N/400 | NAHLGJQ-1400 | 60 | 70 | 400 | 26 | 2.5 |
